JUMO launched a new generation of rail type thermostat

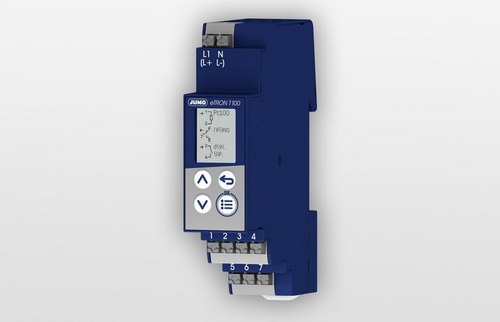

The JUMO eTRON T100 electronic DIN rail-mounted thermostat was specially developed for temperature control and monitoring. In addition to the constant temperature function, it can also be used as an option for more demanding control processes, and in the version as a PID two-point controller with self-optimization function, it provides significantly higher control quality.

The JUMO eTRON T100 impresses with its compact size and wide range of functions. Timers, data loggers, service and operating hour counters, PhotoMOS outputs for additional limit signals and digital inputs are also integrated. Logical links (AND, OR, XOR) can be created and processed internally with the help of digital control signals.


In addition to the input signals of resistance thermometers and thermocouples, a measurement input of 0(4) to 20 mA is also provided for connecting other process variables. In addition to UL certification, the device also complies with the category 1B standard of the railway industry and integrates related measurement inputs, such as Ni1000, specifically designed to meet the requirements of the industry.

The JUMO eTRON T100 has a configurable dot matrix display for process values, parameters, switch status and electrical connection diagrams.

The clearly structured operating concept is supported by additional text-for this purpose, 4 languages are already available in the device-and a practical and fast wiring via the vibration-resistant PUSH-IN terminal for quick and easy commissioning. Alternatively, it can also be configured through the setup program and the standard micro-USB interface.

Due to its compact design, JUMO eTRON T100 can be easily integrated into control cabinets and sub-distribution boards.
